NV1 NVMe PCIe SSD
Efficient performance for thinner notebooks and systems

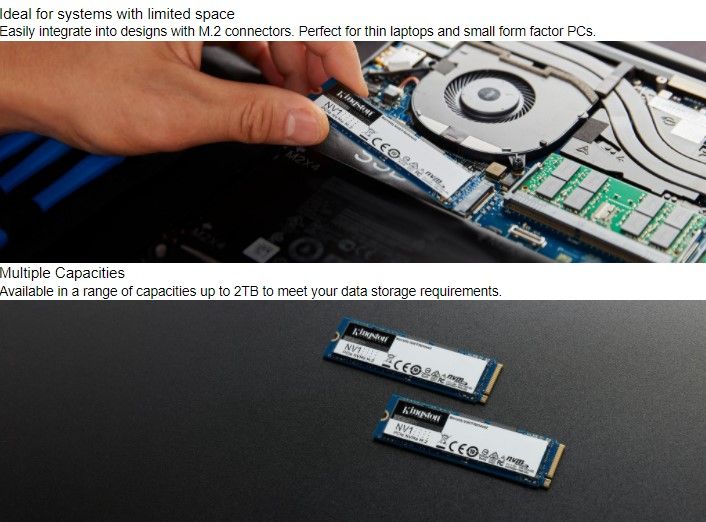

Kingston’s NV1 NVMe™ PCIe SSD is a substantial storage solution that offers read/write speeds up to 2,100/1,700MB/s, which is 3 to 4 times faster than a SATA-based SSD, and 35 times faster than a traditional hard drive. NV1 works with lower power, lower heat, and quicker loading time. The efficient performance and single-sided M.2 2280 (22x80mm) design makes NV1 ideal for thin notebooks and systems with limited space.
Available in capacities from 250GB – 1TB to give you all the space you need for applications, documents, photos, videos, and more.
Offers read/write speeds up to 2,100/1,700MB/s
Kingston reliable quality
Selected particles, rigorous production
Using 3D NAND flash memory chips, no moving parts greatly reduces the risk of failure.
Low power consumption and heat generation, low working noise, shock resistance and vibration resistance.
Comprehensive data Encryption protection
As a self-encrypting hard drive, NV 1 supports a complete security suite (TCG Opal 2.0, AES 256-bit, eDrive), and provides you with powerful data security features.
Form Factor: M.2 2280
Interface: NVMe PCIe Gen 3.0 x 4 Lanes
Capacities: 250GB, 500GB, 1TB, 2TB
Sequential Read/Write: 500GB, 1TB, 2TB – 2100/1700MB/s
Endurance: 500GB – 120TBW
1000GB – 240TBW
2000GB – 480TBW
Power Consumption: 500GB: 5mW Idle / 205mW Avg / 1.1W (MAX) Read / 3.3W (MAX) Write
1000GB: 5mW Idle / 220mW Avg / 1.1W (MAX) Read / 3.3W (MAX) Write
2000GB: 5mW Idle / 340mW Avg / 1.1W (MAX) Read / 3.3W (MAX) Write
Storage Temperature: -40°C~85°C
Operating Temperature: 0°C~70°C
Dimensions: 22mm x 80mm x 2.1mm
Weight: 7g (All capacities)
Vibration Operating: 2.17G (7-800 Hz)
Vibration Non-operating: 20G (20-1000Hz)
This SSD is designed for use in desktop and notebook computer workloads and is not intended for Server environments.
1. Based on “out-of-box performance” using a PCIe 3.0 motherboard. Speed may vary due to host hardware, software, and usage.
2. Some of the listed capacity on a Flash storage device is used for formatting and other functions and thus is not available for data storage. As such, the actual available capacity for data storage is less than what is listed on the products. For more information, go to Kingston's Flash Memory Guide.
3. Total Bytes Written (TBW) is derived from the JEDEC Client Workload (JESD219A).
4. Limited warranty based on 3 years or “Percentage Used” which can be found using the Kingston SSD Manager (Kingston.com/SSDManager). For NVMe SSDs, a new unused product will show a Percentage Used value of 0, whereas a product that reaches its warranty limit will show a Percentage Used value of greater than or equal to one hundred (100). See Kingston.com/wa for details.
Shipping Notice (before you order)
1:When you make order in our store its means your shipping address is valid ,phone number is valid ,if it is written incorrectly please kindly make a note on the order or contact us to change in the first time ,then your parcel will be sending with no error.
2.All of the products are 100% original, and the appearance is in kind.
3.When the post contact, please check the package and the product condition well, and make a unpacking video (if you need proof lately) to help to protect your benefit .Thanks much
For Russian Buyer:
Russian policy, please send us ([email protected]
) your full name (written in Russian) and passport number.
**IMPORTANT from returns&refunds:
We only ship factory-packaged and tested products, 100% working. We are not responsible for improper handling or installation by the customer. In that case, we do not accept complaints and do not resend the goods.
When you place the order, it means that you had agreed with the above terms and instructions. Thanks.
